Index
- How to enter the Telecom modem from a PC
- How to enter the Telecom modem from smartphones and tablets
- How to set up the Telecom modem
How to enter the Telecom modem from a PC
The procedure for enter the Telecom modem it's quick and easy. All you have to do is connect to the login screen of the same, enter the credentials associated with the modem and click on the button to access the administration panel.
To proceed, therefore, start the browser you usually use to browse the Internet (eg. Chrome, Edge, Firefox o Safari), type an address between http://modemtelecom, http://alicegate, 192.168.1.1 e 192.168.0.1 in the address bar, at the top, and press the button Submit of the keyboard.
If you are unable to see the login screen of the modem access panel by doing so, it means that the IP address in question has been changed. If so, if you have a PC Windows, click here Home present at the bottom left and write "Cmd" in the search field, in order to open the Command Prompt. In the new screen that appears, enter the command ipconfig, press the button Submit on the keyboard and locate theIP address visible next to the item Default gateway.
A Macinstead, open the System Preference by clicking on the icon rotella d'ingranaggio present in the Dock bar and select the option Network. In the new window that opened, select yours WIFI network visible in the sidebar on the left, press the button Advanced, select the scheda TCP / IP, locate the item Router and write down the relative IP address. For the detailed procedure, you can take a look at my guide on how to find the IP address of the router.
After identifying the correct IP address of the modem and connecting to the page to log in to the device management panel, you are finally ready to enter the modem. If this is the first time you are trying to access the administration panel, click on the button Log in and create a secure password that you will have to type every time you intend to access the modem by entering it in the fields Set password e Repeat the password.
How do you say? Aren't you asked to set a new password? If so, you can log in directly with the default credentials associated with the modem (usually admin / admin o admin / password) which are indicated on the label located on the back of the device or in the instruction manual supplied with the modem.
If, on the other hand, in the past you have changed the password of the TIM modem and you do not remember which one you have set, you can enter the modem from smartphones and tablets via the app Modem TEAM for Android (also available on alternative stores, for devices without Google services) and iOS / iPadOS), access the section Modem info and press on the option Reset password, to restore the default credentials. Clearly, your device must be connected to the Telecom modem's Wi-Fi network.
If you still can't solve this, all you have to do is reset the device losing the previously customized settings, including the access password. In this regard, my tutorial on how to reset the Telecom modem may be useful.
In any case, after retrieving the credentials associated with the modem, enter them in the fields Username / Username e Password and click on the button Login/OK, to enter the device and manage its various settings. Simple, right?
How to enter the Telecom modem from smartphones and tablets
How do you say? You would like to know if it is possible enter the Telecom modem from smartphones and tablets? If so, you can use the app Modem TEAM for Android devices (also available on alternative stores, for devices without Google services) and iPhone / iPad which allows you to access the administration panel of your modem and manage its various settings.
After downloading the app in question from the store of your device, start it by tapping on its icon on the home screen or in the app drawer and, at the first access, press the buttons NEXT e end. Then select the options Accept e I have read, to accept the privacy policy and the terms of use of TIM Modem, and press the button Allow, to allow the app to access your location and detect your modem.
Now, if you are connected to your home Wi-Fi network and everything went well, you should see the telephone number associated with your line (top left) and the TEAM modem in use. However, in order to access the modem administration panel and view the various options available, you must log in with the credentials associated with yours account MyTIM.
Per farlo, premi sull'opzione Log in with MyTIM account (or click on thelittle man, at the top right, and select the item Login), enter your data in the fields Username e Password e fai tap sul pulsating Log in, to login. If, on the other hand, you don't have a MyTIM account yet, click on the option Subscribe to create one. In this regard, my guide on how to register on TIM may be useful.
Once this is done, click on the icon modem located in the menu below and, in the new screen displayed, choose the option of your interest: Test to view the data relating to your line and perform a speed test; Wi-Fi to manage Wi-Fi related settings, such as the ability to change the frequency or change the password; devices to view and manage the devices connected to the network e USB to view any devices connected to the modem's USB port.
By pressing, instead, onmodem image displayed on the screen, you can access the screen Modem info and view not only the main information (eg. Hardware version, Local IP address, Serial number, Software version etc.) but also reset the password to access the administration panel (Reset password) and restart the device (Restart modem).
How to set up the Telecom modem
At this point, you are ready for set up the Telecom modem according to your preferences. In fact, by accessing the administration panel of the device, you can choose to activate / deactivate the Wi-Fi, change its name and password, change its frequency and much more. You must know, however, that the procedure varies depending on the model of modem you have.
TIM HUB and TIM HUB+

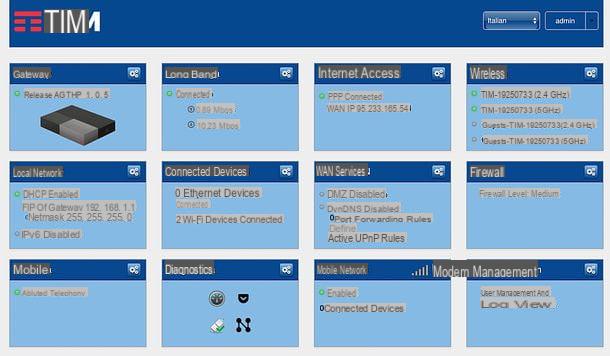

The interface of the modem administration panel TIM HUB e TEAM HUB+ it is almost identical. On the main screen, you can view all the available options (ex. Gateway, Broadband, Firewall, Diagnostics, Connected devices) and pressing on the relative icon of the rotella d'ingranaggio, you can access the individual sections and change the settings of your interest.
For example, by accessing the section wireless, you can change the name and password of the Wi-Fi network generated by the modem, change the radio channel used for data transmission, choose to activate any Wi-Fi networks to be dedicated to guests, program the switching on / off of the modem and much more.
By pressing, instead, on the icon of the rotella d'ingranaggio relative all'opzione WAN services, you can open the router ports, activate the dynamic DNS functions through the service DynDNS and set up the use of technology UPnP. To find out more, I leave you to my guide on how TIM HUB works.
TIM Fibra
You have a TIM Fiber modem? In this case, in the main screen of the device administration panel, you can view the status of the modem, get an overview of the connected devices (including any phones or devices connected via USB) and perform some quick operations, such as changing the Wi-Fi password. -Fi.

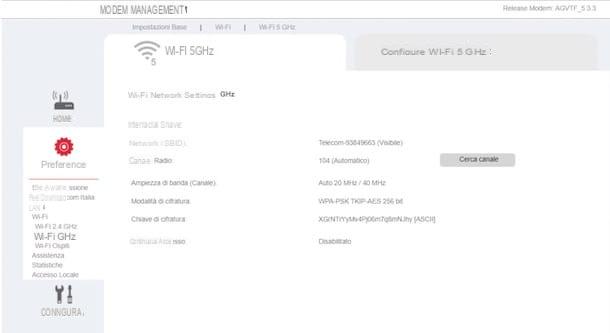

Selecting, invece, l'opzione Pref Renze in the left menu, you can view and manage the connection status (e.g. connect to 5GHz), while accessing the section Configure you can manage advanced options, such as the port mapping function.
Smart TEAM
If you have a modem Smart TEAM, the administration panel of the device varies according to the model in your possession. If you have one Smart Modem Plus, the interface is identical to that of a TIM HUB.
By accessing, instead, the administration panel of one Sercomm Smart Modem o Technicolor Smart Modem, you can immediately view all the devices connected to the modem via Wi-Fi and to the various available ports (Ethernet e USB), including any telephones.
By clicking on the options located in the top menu (Phone Number, Internet, Wi-Fi, Settings e Status e support), you can access the section of your interest and manage the individual options available. For example, if your intention is to restart the TIM modem, you can press on the item Status e support and select the option Restart.
